Sponsored Content: Meeting Today's Microscopy Challenges

Microscopy has never been more powerful, yet researchers face increasingly complex challenges. Whether developing advanced materials, investigating semiconductor devices or exploring quantum technologies, obtaining meaningful results often requires more than a single imaging technique. The demand today is for faster, higher-resolution and more comprehensive characterisation without compromising sample integrity or experimental efficiency.

One of the biggest challenges is understanding materials across multiple length scales. A feature identified with X-ray microscopy may require nanometre-scale investigation using electron microscopy, while surface morphology, mechanical properties or electrical behaviour often demand atomic force microscopy (AFM). Integrating these complementary techniques into a coherent workflow is becoming essential for obtaining a complete understanding of increasingly sophisticated materials.

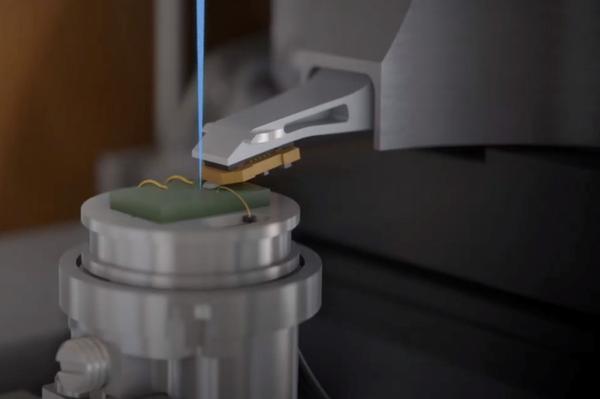

Correlative microscopy is helping researchers bridge these gaps. By combining scanning electron microscopy with AFM, scientists can investigate the same region of interest using multiple contrast mechanisms, revealing structural, topographical and functional information without the uncertainty of relocating features between instruments. This approach is proving invaluable for semiconductor devices, advanced coatings, nanomaterials and battery research.

As datasets become richer, another challenge emerges: extracting meaningful information efficiently. Modern electron microscopy techniques such as scanning precession electron diffraction (SPED) and 4D-STEM now generate comprehensive crystallographic datasets, allowing researchers to map crystal orientation, strain and phase distribution with unprecedented detail. These multidimensional techniques are transforming how materials are characterised while dramatically reducing the time required to analyse complex microstructures.

Researchers are also increasingly looking beyond surface characterisation. Laboratory X-ray microscopy enables non-destructive imaging of internal structures, allowing defects, porosity and three-dimensional architectures to be studied before higher-resolution techniques are applied. Combining volumetric X-ray imaging with electron microscopy and AFM provides a more complete picture while reducing unnecessary sample preparation.

No single microscope can answer every research question. Instead, the future lies in connected workflows that combine complementary techniques, allowing scientists to move seamlessly from macro- to nanoscale characterisation. By integrating X-ray microscopy, electron microscopy, diffraction and correlative AFM, researchers can overcome many of today's characterisation challenges, accelerating discoveries across materials science, energy storage, electronics and quantum technologies.

As scientific questions become more demanding, microscopy is evolving from individual instruments into integrated research platforms—giving scientists the complete picture needed to understand the next generation of materials and devices.

Whether you’re planning a new facility, evaluating instrumentation, applying for funding or simply exploring what’s possible, we’d be delighted to discuss your application.

Discover how Quantum Design UK and Ireland can help turn today’s measurement challenges into tomorrow’s discoveries.
